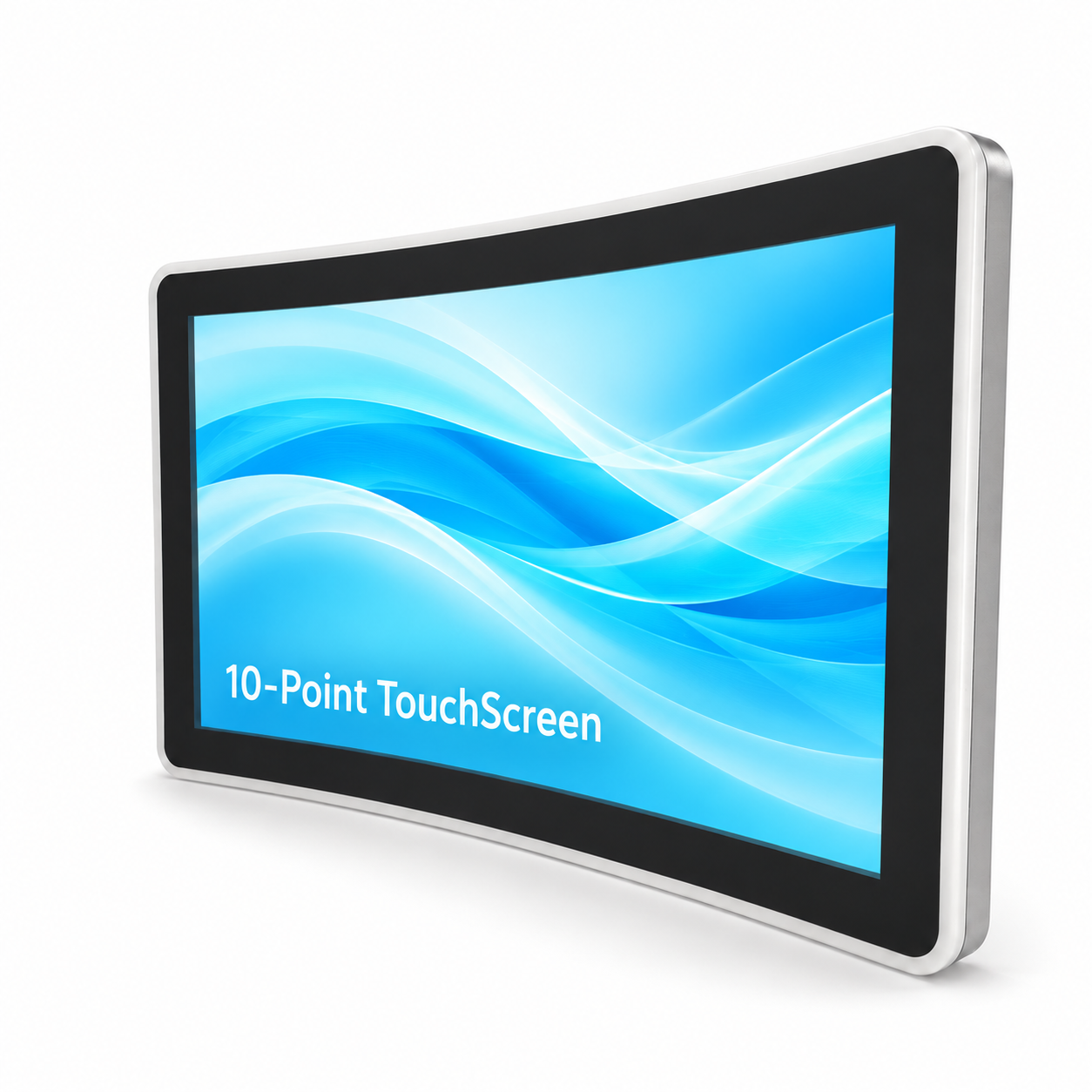

27 Inch LED Lighted Curved Capacitive Touch Display with Acrylic Front Panel
Model DCYL-27A is a 27-inch curved capacitive touch display with 1920 × 1080 resolution, 10-point touch, an acrylic front panel and RGB LED running light with remote control. HDMI / DVI / VGA video inputs and 150 × 150 mm M6 mounting holes.
Specifications & Installation
Model DCYL-27A is a 27-inch curved capacitive touch display with an acrylic front panel, 1920 × 1080 resolution, 10-point touch and RGB LED running light for cabinet integration.
Display Demonstration Video
Product Type
| Model | DCYL-27A |
|---|---|
| Product Classification | 27 Inch LED Lighted Curved Capacitive Touch Display with Acrylic Front Panel |
| Display Type | LED Lighted Curved Touch Display |
| Display Shape | Curved Display |
| Frame Material | Acrylic Front Panel |
Display Specifications
| Screen Size | 27 Inch |
|---|---|
| Aspect Ratio | 16:9 |
| Resolution | 1920 × 1080 |
| Refresh Rate | 60 Hz |
| Backlight | LED |
| Backlight Life | 50,000+ Hours |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | <5 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Colors | 1.07B |
Touch Specifications
| Touch Technology | Capacitive Touch |
|---|---|
| Touch Points | 10-Point |
| Touch Response Time | <5 ms |
| Touch Accuracy | 4096 × 4096 |
| Touch Interface | USB |
| Surface Hardness | Mohs 7 Tempered Glass |
| Glass Thickness | 2 mm |
| Driver | Driver-Free, Plug and Play |
| Protocol Compatibility | 3M / TTL / HID / RS232 |
| Decorative Frame Lighting | RGB LED Running Light (Customizable Colors and Modes) |
| Lighting Mode | Running Light / Steady Light / Customizable |
| Lighting Control | Remote Control |
Interfaces and Power
| Video Inputs | HDMI / DVI / VGA |
|---|---|
| Audio Interface | Audio Input / Output |
| USB Touch Ports | 2 |
| RS232 Touch Port | Yes |
| AC Power Input | 110/220V |
| DC Power Input | |
| Power Adapter Output | 7A |
| Cable Length | 1.5 m |
Structure, Dimensions and Installation
| Appearance | Curved Display with Acrylic Front Panel and RGB LED Lighting |
|---|---|
| Housing Structure | Metal Rear Housing |
| Monitor Dimensions (W × H × T) | 692.22 × 422.30 × 106.49 mm |
| Rear Box Dimensions (W × H) | 380 × 230 mm |
| Mounting Hole Spacing | 150 × 150 mm |
| Mounting Hole Specification | M6 |
| Installation | Embedded Installation |
| Net Weight |
Packaging and Included Accessories
| Package Size | 766 × 180 × 500 mm |
|---|---|
| Gross Weight | 11.5 kg |
| Packaging | Bag + Foam + Carton |
| Included Accessories | Power Cord, 7A Adapter, VGA Cable, HDMI Cable, USB Cable, Touch Cable, Remote Control, Screws |
| Certifications |
Customization and Supply
| Minimum Order Quantity | 1 Piece |
|---|---|
| Customization | Size/shape, touch, mounting, glass, RGB lighting, interfaces, startup logo. |
| Warranty | 1 Year |
Frequently Asked Questions
Is this monitor compatible with my slot machine cabinet?
Compatibility depends on the cabinet opening, mounting holes, rear clearance, video input and touch controller protocol. Send your cabinet drawing, existing monitor label and connector photos so these can be checked before ordering. Screen size alone is not enough to confirm a fit.
Can this display replace my existing monitor?
Compare the outer dimensions, rear housing, mounting pattern, connector positions, video signal and touch protocol with your current unit. Send front and rear photos and the model label. A monitor with the same diagonal size can still have a different frame or mounting arrangement.
What information should I send for a quotation?
Send the product model, quantity, destination, cabinet opening dimensions, mounting drawing, required video input and touch controller protocol. For a replacement, include photos of the existing monitor label and all connectors.
Do I need a video cable and a separate touch cable?
Yes. The video connection carries the image, while the touch connection sends touch data to the mainboard. Connect both according to the confirmed configuration. A working image does not mean that the touch cable is connected correctly.
Is the touch technology PCAP or infrared?
Check the individual product specification. Our monitor range includes capacitive and infrared versions; they use different touch structures and may need different mounting clearances. Tell us which type your cabinet requires before ordering.
Does 10-point touch mean every game supports ten fingers?
Ten-point touch describes the touch panel capability. The mainboard, controller protocol and application determine how many touches the machine actually uses. Confirm the complete hardware configuration for your project.
Which video input should I use?
Use an input supported by both the monitor configuration and your mainboard. Send the mainboard output type and required resolution. Port availability alone does not guarantee support for every signal or resolution.
How do I confirm the correct power adapter?
Check the adapter output voltage, current rating, connector size and polarity against the monitor label. The current rating alone is insufficient. Use the supplied or approved adapter and confirm mains compatibility before connection.
Can the LED colors and lighting modes be customized?
For LED models, tell us the required colors, running or steady effects and control method. Available modes and controllers depend on the model. Confirm the lighting configuration before sample approval or bulk production.
How do I check the mounting holes and screw length?
Compare the mounting drawing with your cabinet. Check hole spacing, thread size, rear clearance and permitted screw depth. Use suitable screws and avoid forcing an incompatible thread or using screws that are too long.
What should I check if the image works but touch does not?
Check the separate touch cable, USB or serial connection, controller protocol and mainboard touch settings. Try the approved cable and port. Send the monitor and controller labels, connector photos and a short video if assistance is needed.
What should I check if touch works but there is no image?
Check monitor power, the selected video input, the video cable and the mainboard output resolution. Test with a known working cable or compatible video source. Send photos of the wiring and any on-screen message for review.
How is the monitor packed and what is included?
Check the packing and accessory list for the individual model. Standard packing may include a protective bag, foam and carton. Confirm the adapter, video cables, touch cable, controller and mounting screws listed in your quotation.
Can I order a sample before a bulk order?
Send the model and required configuration to request a sample quotation. Confirm sample availability, price, shipping and production timing before payment. Test the sample in your actual cabinet and mainboard configuration before approving a bulk order.
How do I request warranty or installation support?
Send the order reference, model or serial label, a description of the issue, wiring photos and a short video. Warranty duration and coverage follow the confirmed order terms. Keep the original packing while the issue and return procedure are reviewed.
